Kirjeldus
Küsi pakkumist
97500/97900 - üherealised koonusrull-laagrid
mis koosneb koonuse (sisemise rõnga) komplektist ja tassist (välisrõngast),Ühe rida; Puur: 127 mm; Tassi välisläbimõõt: 228,600 mm; laagri laius: 53,975 mm; kaal: 8,3 kg.

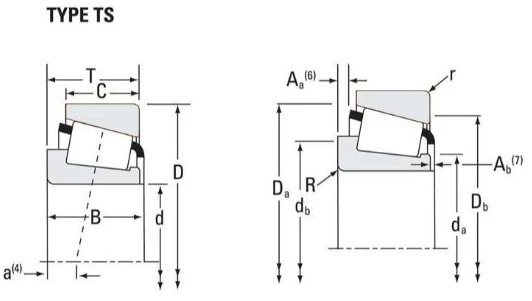

| Mõõdud ja tehnilised andmed | |
| Puuri läbimõõt-d | 127 mm |
| Välisläbimõõt-D | 228 600 mm |
| Laius-B | 49,428 mm |
| C - tassi laius | 38.100 mm |
| T – laagri laius | 53,975 mm |
| C90 - Dünaamiline radiaalreiting (90 miljonit pööret)4 | 116000 N |
| C1 - Dünaamiline radiaalreiting (1 miljon pööret)5 | 446000 N |
| C0 - Staatiline radiaalreiting | 486000 N |
| Ca90 - Dünaamiline tõukejõud (90 miljonit pööret)6 | 146000 N |
| Puuri materjal | Stantsitud teras |
| Laagri kaal | 8,30 kg |
Kohaletoimetamine ja pakid
Koonusrull-laagrite varude nimekiri
| Laager nr. | Suurus (mm) |
| L507945/L507910 | 53.975x87.313x18.258 |
| LM806349C/LM806310 | 53.975x88.9x20.244 |
| LM806449/LM806610 | 53.975x88.9x19.05 |
| 33895/33821 | 53.975x95.25x28.575 |
| 33895/33822 | 53.975x95.25x28.575 |
| 33895N/33822 | 53.975x95.25x28.575 |
| 389A/382A | 53.975x96.838x21.946 |
| 389AS/382A | 53.975x96.838x21.946 |
| 389A/382 | 53.975x98.425x21.946 |
| 389AS/382 | 53.975x98.425x21.946 |
| 389AS/383 | 53.975x100x21.946 |
| 389A/383 | 53.975x100x21.946 |
| 389AS/383A | 53.975x100x21.946 |
| 389A/383A | 53.975x100x21.946 |
| 389A/383X | 53.975x100x25.403 |
| 389AS/383X | 53.975x100x25.403 |
| 4553/4520 | 53.975x101.201x46.507 |
| 4595/4520 | 53.975x101.201x40.157 |
| 539W/533A | 53.975x103.188x38.103 |
| 539A/533A | 53.975x103.188x38.103 |
| 539/533A | 53.975x103.188x38.103 |
| 45287/45220 | 53.975x104.775x30.958 |
| 45287/45221 | 53.975x104.775x30.958 |
| 456/453E | 53.975x104.775x32.548 |
| 456/453X | 53.975x104.775x30.163 |
| 67787/67720 | 174.625x247.65x47.625 |
| 67787V/67720 | 174.625x247.65x47.625 |
| 67786/67720 | 174.625x247.65x47.625 |
| 67787/67720V | 174.625x247.65x47.625 |
| 67787V/67720V | 174.625x247.65x47.625 |
| 67786/67720V | 174.625x247.65x47.625 |
| M236845/M236810 | 174.625x260.35x53.975 |
| M236845V/M236810 | 174.625x260.35x53.975 |
| M236845V/M236810V | 174.625x260.35x53.975 |
| M236845/M236810V | 174.625x260.35x53.975 |
| HM237542/HM237510 | 174.625x288.925x63.505 |
| HM237542H/HM237510 | 174.625x288.925x63.5 |
| HM237542H/HM237511 | 174.625x288.925x63.505 |
| HM237542/HM237511 | 174.625x288.925x63.505 |
| 94687/94113 | 174.625x288.925x63.5 |
| 94687/94113A | 174.625x288.925x63.5 |
| HM237542H/HM237513 | 174.625x289.974x63.503 |
| HM237542/HM237513 | 174.625x289.974x63.503 |
| 94687/94118 | 174.625x298.45x63.5 |
| EE219068/219117 | 174.625x298.45x82.55 |
| EE219068/219122 | 174.625x311.15x82.55 |
| H238148/H238110 | 174.625x311.15x82.55 |
| EE780688/781400 | 174.625x355.6x61.913 |
| GN203KRRB | 55.6x120x73 |
| GN111KRRB | 42.9x100x58.7 |
| 67890H-67820CD | 190.5x266.7x103.188 |
| 67885-67820CD | 190.5x266.7x103.188 |
| NA67885SW-67820CD | 190.5x266.7x109.535 |
| 87750C-87112D | 190.5x282.575x107.95 |
| 87750-87112D | 190.5x282.575x107.95 |
| 87750C-87112DC | 190.5x282.575x107.95 |
| 87750-87112DC | 190.5x282.575x107.95 |
| 93750-93127CD | 190.5x317.5x146.047 |
| 93750-93127DW | 190.5x317.5x146.047 |
| 93750-93128XD | 190.5x319.977x146.047 |
| EE420751-421451CD | 190.5x368.3x193.672 |
| EE420751-421455D | 190.5x368.3x190.497 |
